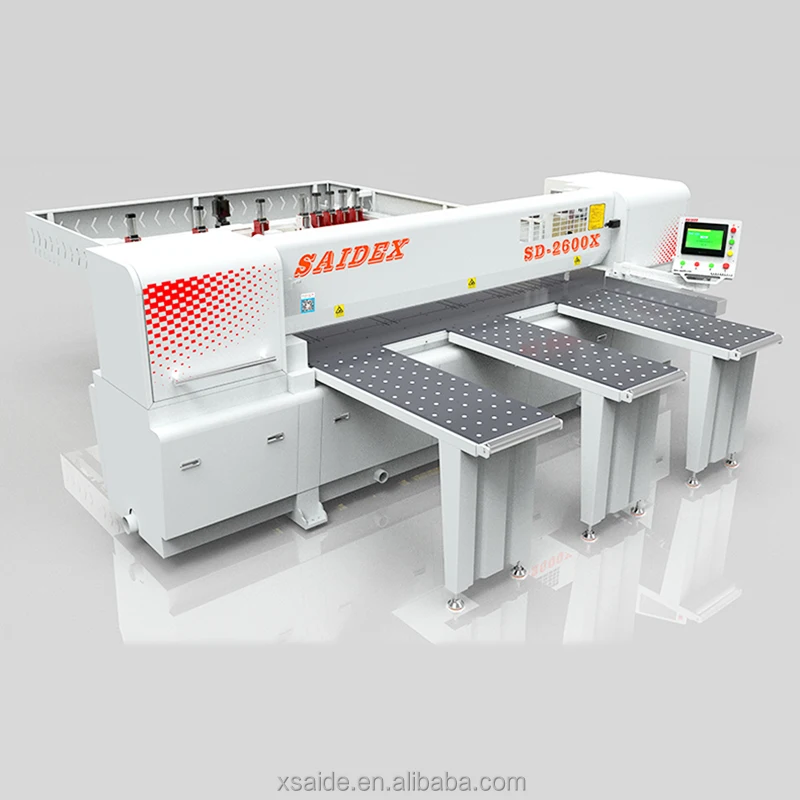

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

Brand Name : SAIDEX

Place of Origin : Guangdong,China

Certification : CE

MOQ : 1set

Price : Confirm price based on product

Packaging Details : Angle iron frame, wood case packing

Delivery Time : To be negotiated

Payment Terms : Advance 30% deposit and ship after receiving 70% final payment

Supply Ability : 100 Set/Sets per Month

Cutting Area : Depending On Demand

Machine Size : Customized

Product Name : Acrylic Cutting Machine

Working Temperature : 0-45℃

Cutting Accuracy : High Accuracy

Cutting Speed : High Speed

Cutting Thickness : 0.1-30mm

Cooling System : Water Cooling

Contact Now

High Precision Automatic acrylic PM PS cutting saw machine

SAMPLES FREE! SAMPLES FREE! SAMPLES FREE!

Efficient and fast processing ability is commiteed to improving the product production rate.

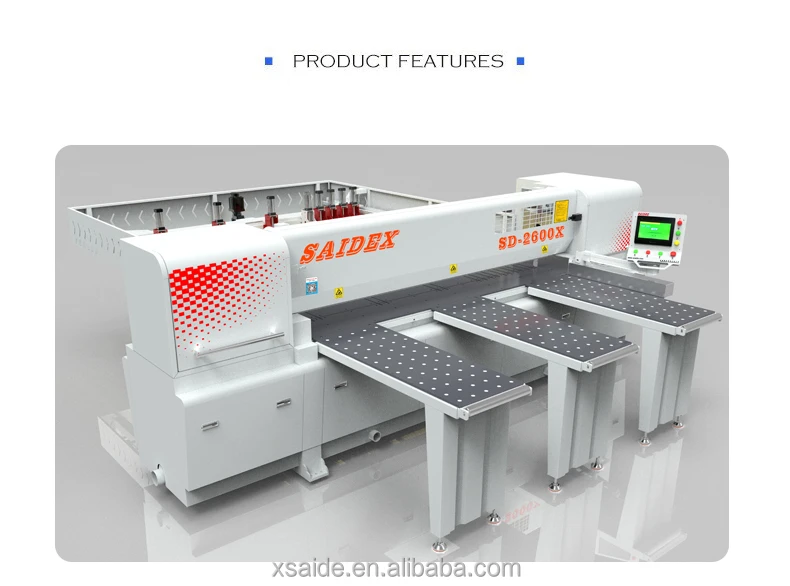

Products Features:

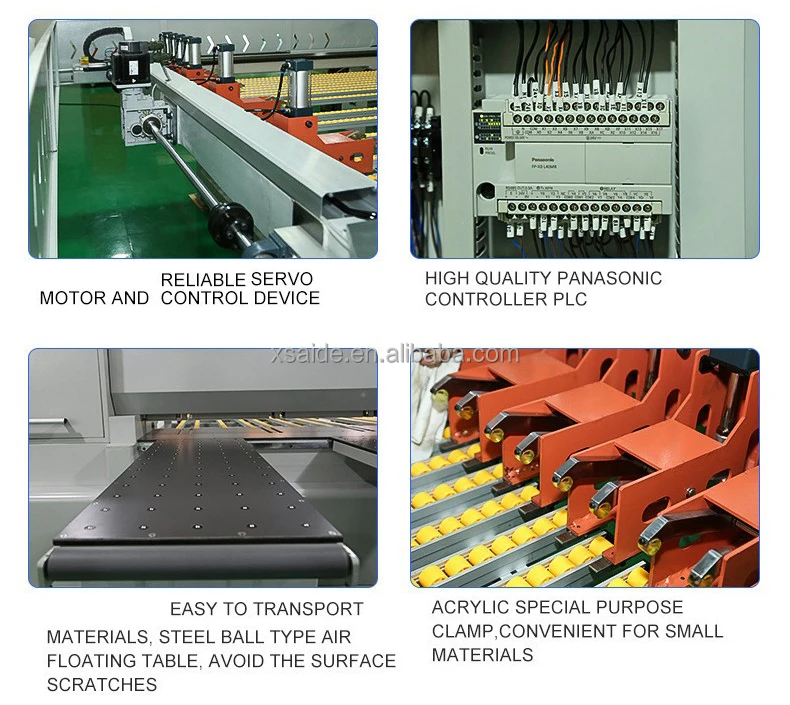

1. Reliable Imported servo motor and control device.

2. High quality imported controller PLC.

3. Acrylic special purpose clamp, convenient for samll materails.

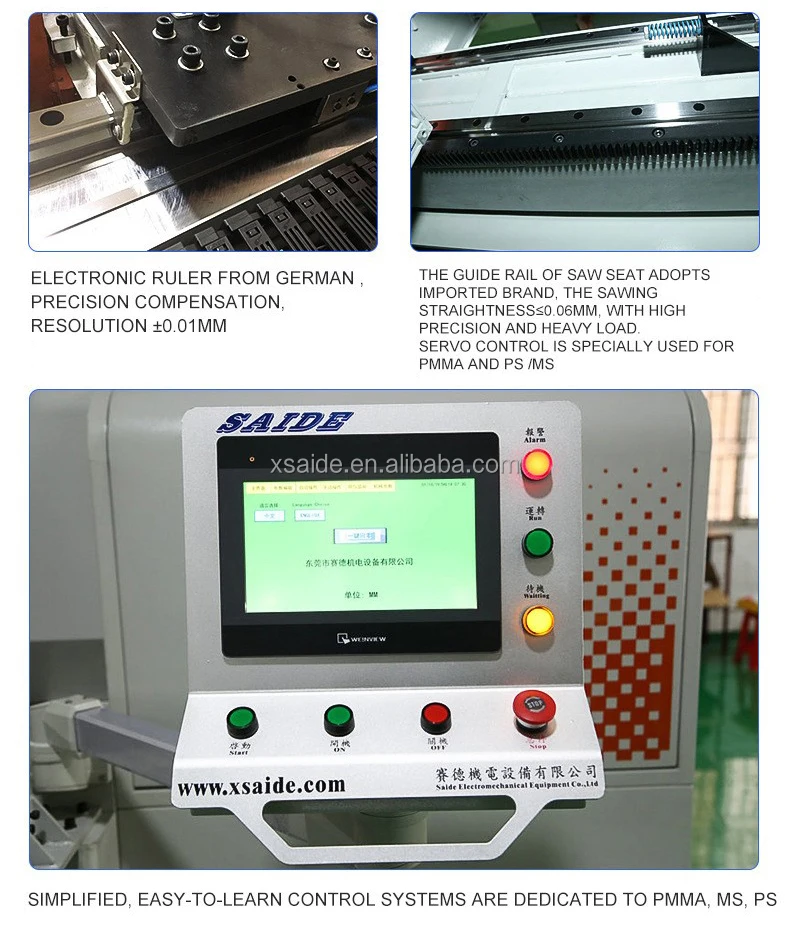

4. Electronic ruler from German, precision compensation, resolution 0.01mm.

5. Easy transport the materials, steel ball type air floating table, avoid the surface scratches.

6. Simplified, easy to learn control systems are dedicated to PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC

7. The guide rail of saw seat adopts imported brand, the sawing straighness < 0.06mm, with high precision and heavy load, panasonic servo control is specially used for PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel sawSD-2600X acrylic electronic cutting saw automatic cutting machine computer panel sawSD-2600X acrylic electronic cutting saw automatic cutting machine computer panel sawSD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

Products Name SD-2600X Acrylic electronic cutting saw
Dimensions(L*W*H) 5230mm*4585mm*1660mm
Sawing length 2600mm
Sawing thickness 80mm
Dia. of main saw blade φ305-405mm
Axis dia. of main saw blade φ30mm
Rotate speed of main saw blade 2000-5000rpm(Frequency control of motor speed)
Saw carriage forward speed 1-30m/min
Saw carriage back speed 60m/min
Head saw motor 11KW
Saw base drive motor 1000W(Imported servo)
Automatic feeding motor 1000W(Imported servo)
High pressure blower motor 2.2KW
Total Power 13KW
Automatic feeding speed 0-60m/min
Operation pressure 5-7kg/cm²
Workbench height 960mm
Machine net weight 3500KG

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

1. HD Touch screen control system:

1) Easy operation, safety & reliable.

2) Which has complete operating hints and troubleshooting guide functions.

3) It’s cutting plan can edit manually; can simulate or execute cutting plans.

4) Can compatible with bar code manage software or factory automation software.

5) Machine can receive high precesion about 0.01mm.

2. Imported control system.

3. Add side aligning system:

Fix cutting panel width side, control panels won’t move or shake when sawing,

ensure sawing precision. Pressure can be adjusted according to difference thickness,

weight and material, ensure the precision of sawing dimension.

4. Saw carrier

1) Driven by imported high-precision rack & pinion, stable movement, ensure cutting precision.

2). Saw carrier pull back position automatically controlled base on next cutting length,

Which reduce unused moving time and greatly improve efficiency.

3). Max cutting speed reach to 60m/min.

5. Loading system: Air floating loading table,avoiding board scratching and assuring

smoother board movement, suit for heavy and big type PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .

6. Position system:

Imported CNC automatic positioning ruler & slid rail, effectively avoid the artificial

operation error, and greatly increase cutting accuracy. Machine can receive high precesion about 0.01mm.

7. Automatic feed system

1) Adopt 7pcs pneumatic holding gripers, can gripe the panel steadily, highly reduce

labor intensity, and greatly improve production efficiency, Min holding pan

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel sawSD-2600X acrylic electronic cutting saw automatic cutting machine computer panel sawSD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

1. After-sell service:


Engineers available to service machines in overseas.
You can also have training in our factory for free.
24 hours online service every day, free technical support for whole machine life.

2. Technical support:


Machine has been adjusted and all parts will be tested before shipping by our QC staffs.
We will provide the consumable parts whole machine life when you need replacement.

3. Warranty:


Wholemachine with one year guaranty for the machine main parts (excluding the consumables), life time maintenance free of charge.

SD-2600X acrylic electronic cutting saw automatic cutting machine computer panel saw

DONGGUAN SAIDE ELECTROMECHANICAL EQUIPMENT CO.,LTD


Address: Guangdong province,Dongguan city shilong town the frist industrial zone,China

Mobile: +86 18665150003( WhatsApp, Wechat available)

Product Description:

Our product, the Acrylic Cutting Machine, is the perfect choice when it comes to cutting acrylic materials with precision. It is designed to work with a cutting saw, and is powered by a 220V/50Hz power supply. The machine is highly customisable and can be tailored to the needs of the user. Its specialised design makes it an ideal tool for cutting acrylic materials with quality and accuracy. It is a reliable and efficient solution for all cutting needs, from small projects to large scale production runs. With its automated operation and user-friendly features, this Acrylic Cutter Machine is the perfect choice for anyone looking for an easy and reliable way of cutting acrylic materials.
The Acrylic Chopping Machine is designed to provide maximum accuracy while cutting through the acrylic material. It is equipped with a powerful motor that ensures smooth and accurate cuts every time. It also has a user-friendly control system which makes it easy to use and operate. With the Acrylic Chopping Machine, you can easily adjust the speed, depth, and angle of the cutting saw to suit your needs. It is also equipped with a durable and reliable cutting saw which ensures the highest quality of cuts.
The Acrylic Cutting Saw is specially designed to cut through acrylic materials with precision. It can easily cut through any thickness of acrylic material with ease. It is designed to be durable and reliable, with a long lifespan. The Acrylic Cutting Saw is designed to provide maximum accuracy and consistency while cutting acrylic materials. With its easy to use and user-friendly features, the Acrylic Cutting Saw is the perfect choice for any cutting needs.
The Acrylic Cutting Machine is the perfect tool for any cutting needs. Whether it's for small projects or large scale production runs, it is the perfect choice for cutting acrylic materials with accuracy and precision. With its user-friendly features and automated operation, this Acrylic Cutter Machine is the perfect tool for anyone looking for an easy and reliable way of cutting acrylic materials.

Features:

  • Product Name: Acrylic Cutting Machine
  • Working Temperature: 0-45℃
  • Cutting Speed: High Speed
  • Software: CorelDraw, AutoCAD, Etc.
  • Cutting Method: Cutting Saw
  • Cutting Accuracy: High Accuracy
  • Specialized for Acrylic Slicing, Segmenting, and Cutting

Technical Parameters:

Product Attributes Details
Cutting Thickness 0.1-30mm
Cutting Accuracy High Accuracy
Cutting Method Cutting Saw
Software CorelDraw, AutoCAD, Etc.
Cooling System Water Cooling
Cutting Speed High Speed
Power Supply 220V/50Hz
Cutting Area Depending On Demand
Control System DSP Control System
Machine Size Customized
Product Name Acrylic Shearing Machine, Acrylic Chopping Machine, Acrylic Slicing Machine

Applications:

Application & Scene of SAIDEX Acrylic Cutting Machine

The SAIDEX Acrylic Cutting Machine is a high precision, CE certified cutting device that is widely used in many industries. It is designed with a cutting thickness range of 0.1-30mm, and can be used to accurately cut a variety of materials including acrylic, wood, plastic, metal, and more. It has a large cutting area and a high speed cutting speed, with an accuracy of high accuracy. It is equipped with advanced software such as CorelDraw and AutoCAD, and is the perfect choice for a variety of application scenarios.
The SAIDEX Acrylic Cutting Machine can be used to create a variety of products and decorations, including signs, displays, models, carvings, toys, crafts, furniture, and more. It is widely used in advertising, printing, packaging, electronics, display, decoration, arts and crafts, and other industries. The cutting machine is also suitable for many occasions, such as exhibition, conference, trade show, shopping mall, and more.
The SAIDEX Acrylic Cutting Machine is available with a minimum order quantity of 1set and a price that is confirmed based on the product. It is carefully packaged with an angle iron frame and a wood case for secure transport. Delivery time is to be negotiated, while payment terms are advance 30% deposit and ship after receiving 70% final payment. The supply ability of SAIDEX Acrylic Cutting Machine is up to 100 Sets per Month.

Customization:

Acrylic Cutting Machine
  • Brand Name: SAIDEX
  • Place of Origin: Guangdong,China
  • Certification: CE
  • Minimum Order Quantity: 1 set
  • Price: Confirm price based on product
  • Packaging Details: Angle iron frame, wood case packing
  • Delivery Time: To be negotiated
  • Payment Terms: Advance 30% deposit and ship after receiving 70% final payment
  • Supply Ability: 100 Sets per Month
  • Cutting Method: Cutting Saw
  • Product Name: Acrylic Cutting Machine
  • Machine Size: Customized
  • Cutting Accuracy: High Accuracy
  • Working Temperature: 0-45℃

Acrylic Cut-off Saw Machine, Acrylic Chopping Machine, Acrylic Segmenting Machine are available.

Support and Services:

Acrylic Cutting Machine technical support and service provides customers with access to a team of experienced technicians who are available to provide assistance with installation, maintenance, troubleshooting, and other related services. Our technicians can provide assistance via phone, email, or on-site visits. We also offer additional services such as training and product customization, as well as extended warranties and repair programs.

Packing and Shipping:

Packaging and Shipping

The Acrylic Cutting Machine should be packaged and shipped with care to ensure its safe arrival. It should be double-boxed with a durable outer box and a protective inner box. It should be wrapped with bubble wrap and newspaper to provide additional protection. Fragile labels should be affixed to the box.
The box should be securely sealed with durable packing tape. It should be shipped via a reliable and insured courier service to ensure its safe arrival. Upon delivery, the customer should inspect the box for any signs of damage. If any damage is detected, the customer should refuse delivery and contact the shipping company.

FAQ:

  • Q: What is the brand name of the acrylic cutting machine?
    A: The brand name of the acrylic cutting machine is SAIDEX.
  • Q: Where is the acrylic cutting machine manufactured?
    A: The acrylic cutting machine is manufactured in Guangdong, China.
  • Q: Does the acrylic cutting machine come with a certification?
    A: Yes, the acrylic cutting machine comes with a CE certification.
  • Q: What is the minimum order quantity for the acrylic cutting machine?
    A: The minimum order quantity for the acrylic cutting machine is 1 set.
  • Q: How much does the acrylic cutting machine cost?
    A: The price of the acrylic cutting machine will be confirmed based on the product.
